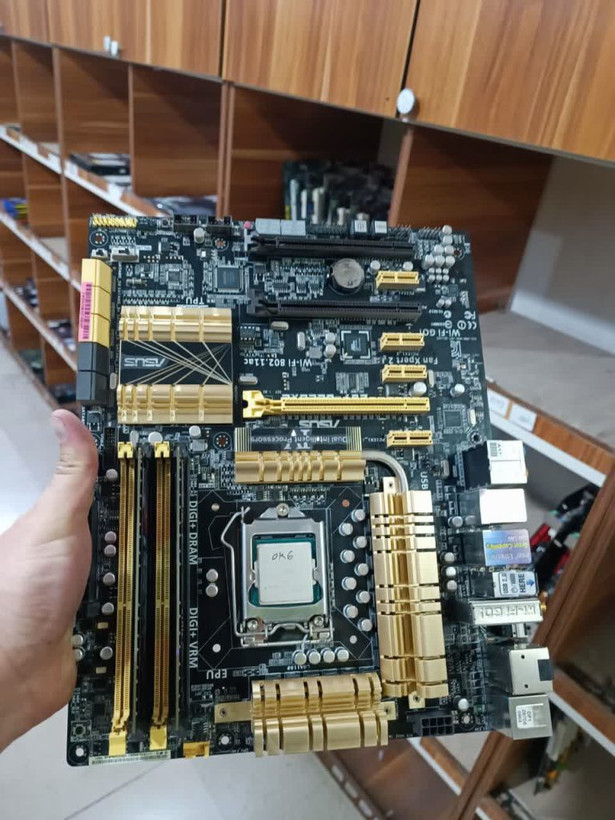

باندل مادربرد ایسوس Asus Z87-PRO WIFI+ پردازندهcore i7 4770 + رم 8GB DDR3

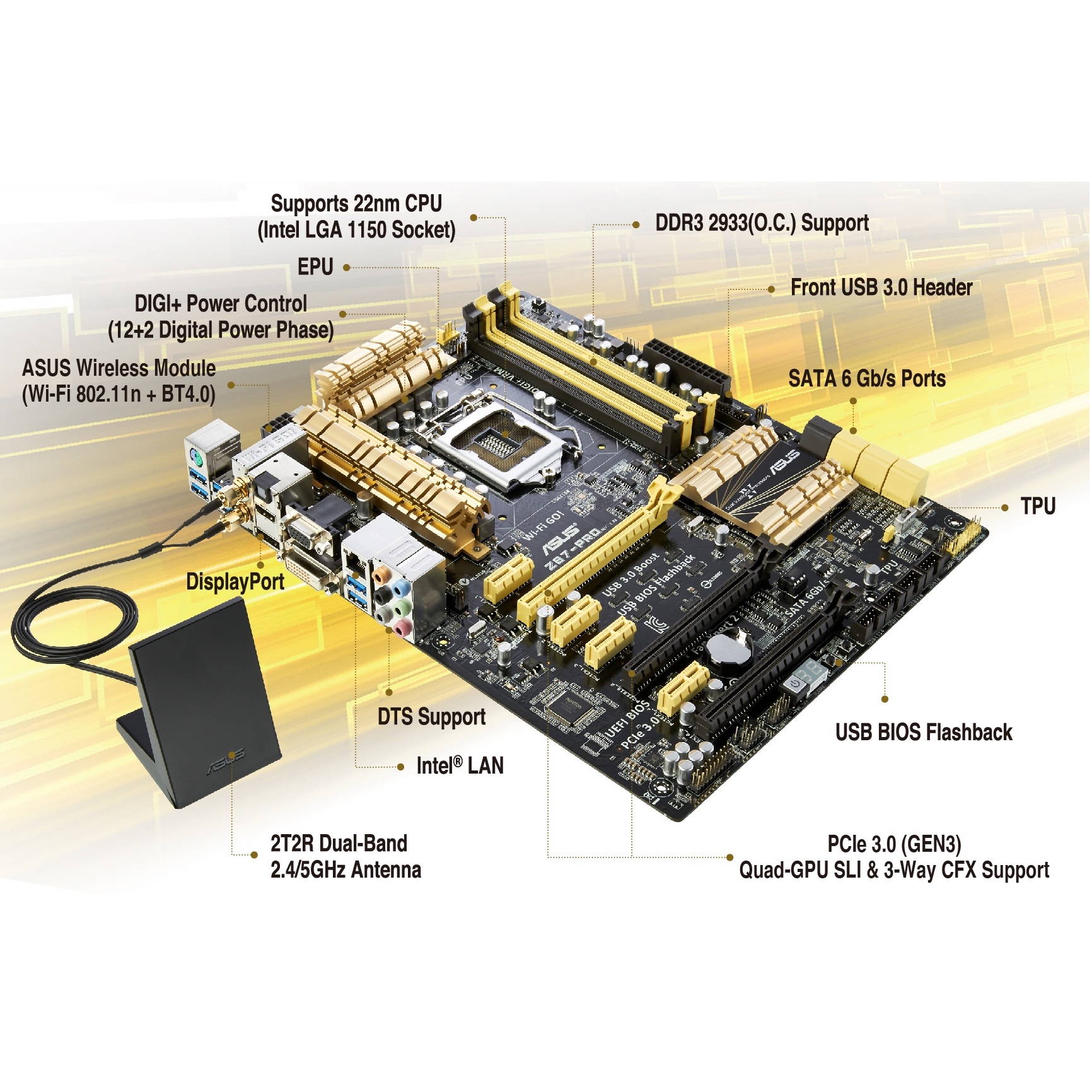

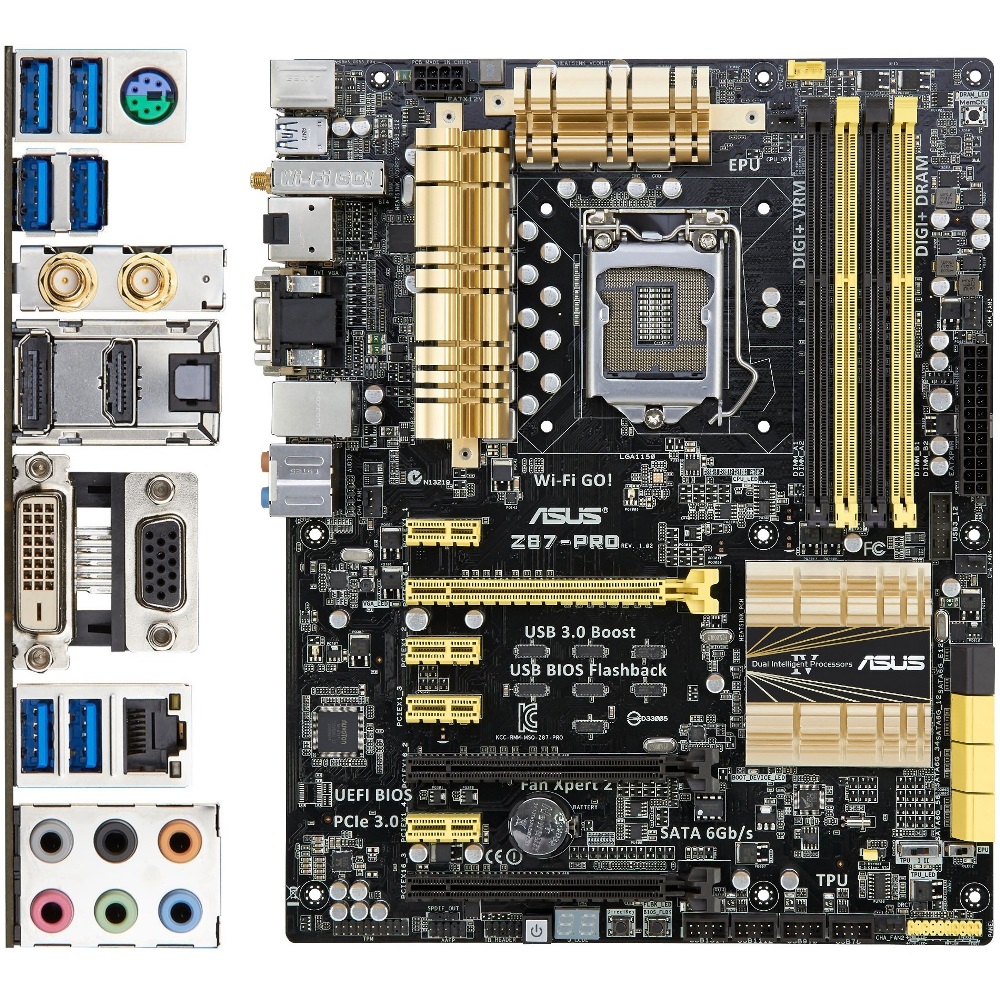

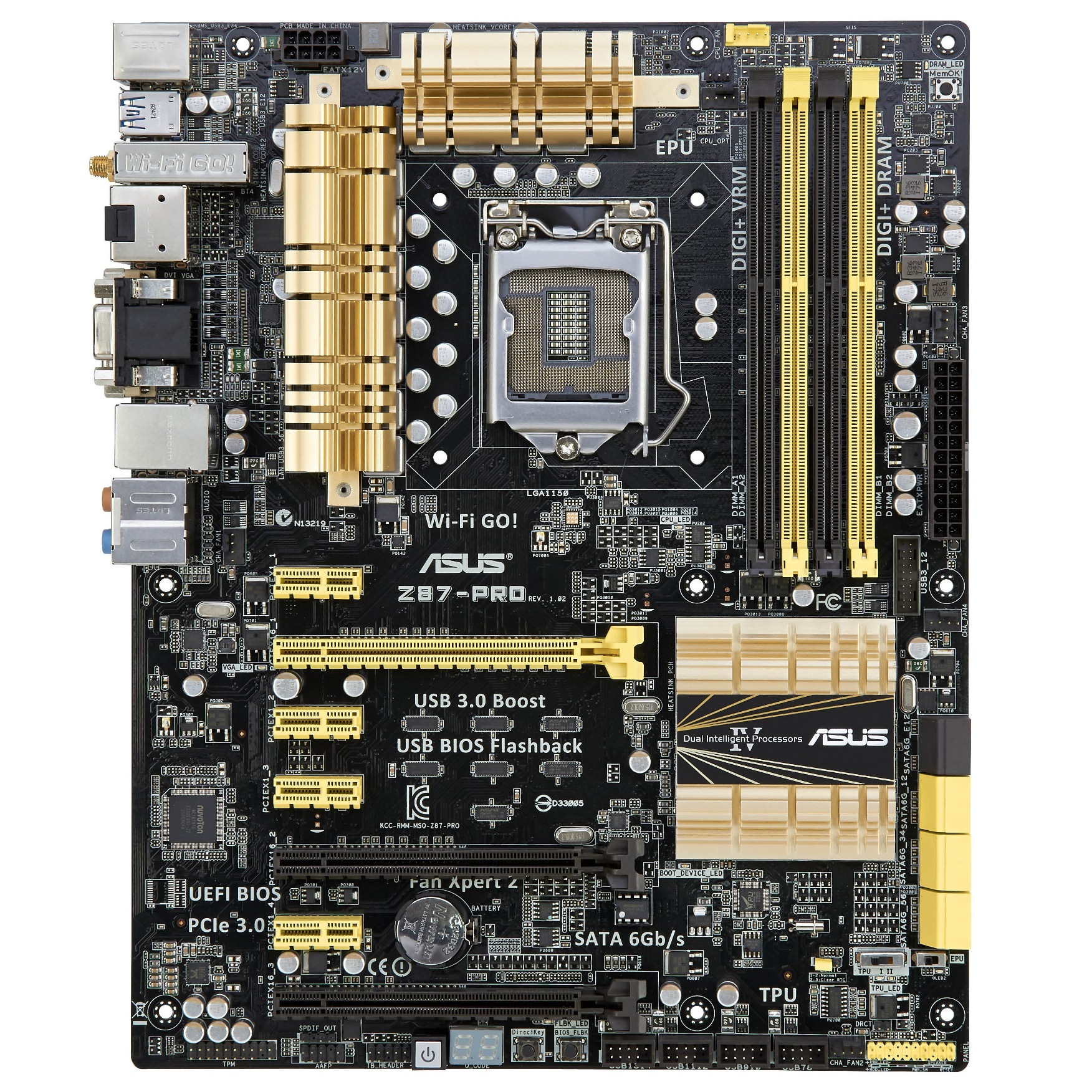

مادربرد ایسوس Mainboard Asus Z87-PRO

Z87-PRO با مدار رگلاتور 12 فاز دیجیتال است که از نظر نمای ظاهری و کارکرد با برادر خود Z87-Delux برابری می کند. شش پورت USB 3.0، رابط بی سیم، خروجی های تصویری DVI، D-Sub، HDMI و DisplayPort در لیست مشخصات Z87-PRO  ایسوس قرار می گیرند. با بهره گیری از فناوری EPU نیز می توان بر انواع تنظیمات مفید مانند کنترل ولتاژ بخش های مختلف و میزان دور فن ها نظارت داشت.

مشخصات کلی Mainboard Asus Z87-PRO :

CPU
Intel Socket 1150 for 4th Generation Core i7/ Core i5/Core i3/ Pentium/Celeron Processors Supports Intel 22 nm CPU Supports Intel Turbo Boost Technology 2.0  The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
Intel Z87
RAM
4 x DIMM, Max. 32GB, DDR3 3000/ 2933/2800/ 2666/2600/2500/ 2400/2200/ 2133/2000/1866/ 1800/1600/1333 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extrem
AUDIO
Realtek ALC1150 8-Channel High Definition Audio CODEC - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR recording input (Line-in) Audio Feature
GRAPHICS Onboard
Integrated Graphics Processor Multi-VGA output support : HDMI/DVI-D/RGB/DisplayPort 1.2 ports 1 - Supports HDMI with max. resolution 4096 x 2160  24 Hz / 2560 x 1600  60 Hz - Supports DVI-D with max. resolution 1920 x 1200 60 Hz - Supports RGB with m
HDMI :  Yes
DVI : Yes
RGB : Yes
Supports NVIDIA Quad-GPU SLI Technology *2 Supports AMD Quad-GPU CrossFireX Technology Supports AMD 3-Way CrossFireX Technology
HDD
Intel Z87 chipset : 6 x SATA 6Gb/s port(s), yellow Support Raid 0, 1, 5, 10 Supports Intel Dynamic Storage Accelerator, Intel Smart Response Technology, InteL Rapid Start Technology, Intel Smart Connect Technology*5 ASMedia ASM1061 controller : *6 2
Raid : Yes
LAN : Intel I217V, 1 x Gigabit LAN Controller Intel LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
Wi-Fi 802.11 a/b/g/n Supports dual band frequency 2.4/5 GHz
Bluetooth V4.0 Bluetooth V3.0+HS
Expansion : 2 x PCIe 3.0/2.0 x16 (x16 or dual x8) 1 x PCIe 2.0 x16 (x4 mode) *3 4 x PCIe 2.0 x1 *4
USB :  Intel Z87 chipset : 4 x USB 3.0/2.0 port(s) (2 at back panel, blue, 2 at mid-board) Intel Z87 chipset : 8 x USB 2.0/1.1 port(s) (8 at mid-board) ASMedia USB 3.0 controller : 4 x USB 3.0/2.0 port(s) (4 at back panel, blue)

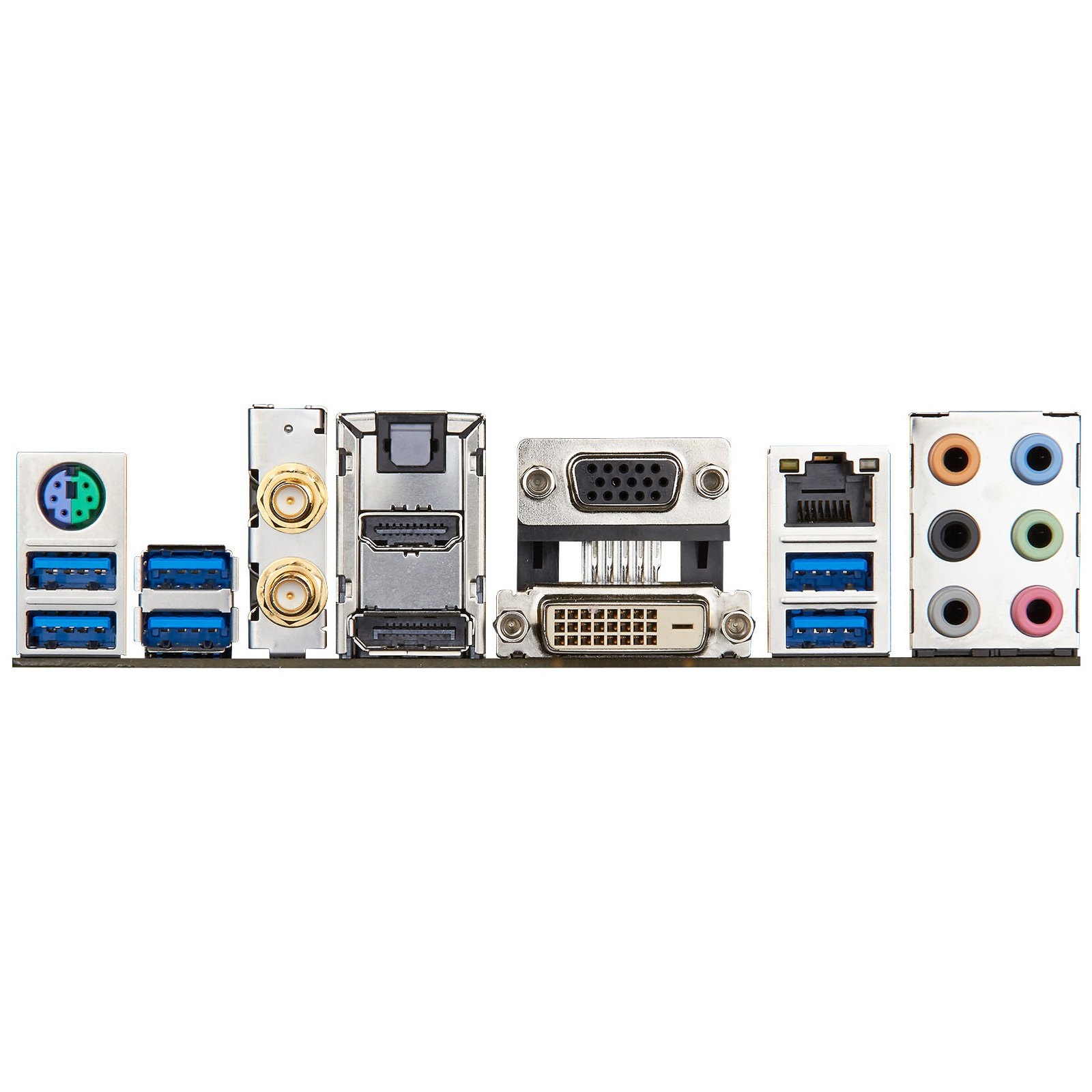

1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 6 x USB 3.0 (blue) 1 x Optical S/PDIF out 6 x Audio jack(s) 1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n and Bluetooth v4.0/3.0+HS)
1 x USB 3.0 connector support additional 2 USB 3.0 port(s) (19-pin) 4 x USB 2.0 connector support additional 8 USB 2.0 port 1 x TPM header 8 x SATA 6Gb/s connector 1 x CPU Fan connector (1 x 4 -pin) 1 x CPU OPT Fan connector (1 x 4
